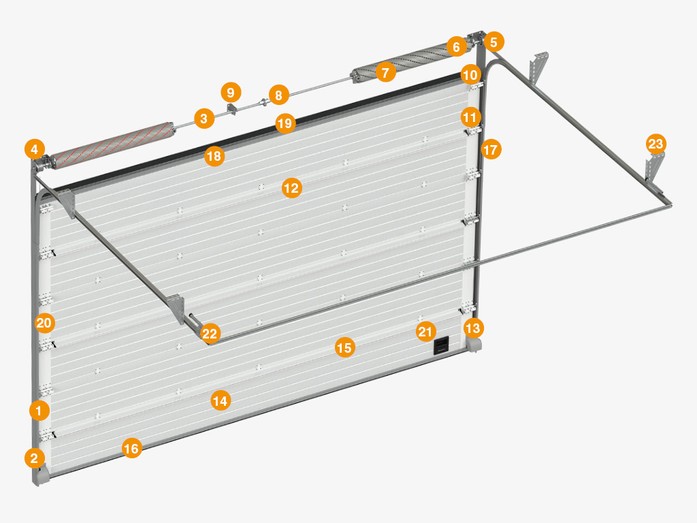

Construct and sizes
- 1. Vertical track
- 2. Vertical angle
- 3. Cylindrical shaft
- 4. Spring safety device
- 5. Drum
- 6. U-shaped bracket
- 7. Counterbalancing mechanism (torsion spring)
- 8. Steel coupler
- 9. Internal support bracket
- 10. Top support with roller holder
- 11. Side support with roller holder
- 12. Strut
- 13. Cable break safety device
- 14. Sandwich panel
- 15. Hinge
- 16. Bottom profile and seal
- 17. Side seal
- 18. Top profile
- 19. Top seal
- 20. Perforated side cap
- 21. Doorstep handle
- 22. Spring bumper
- 23. Universal mounting bracket for horizontal tracks

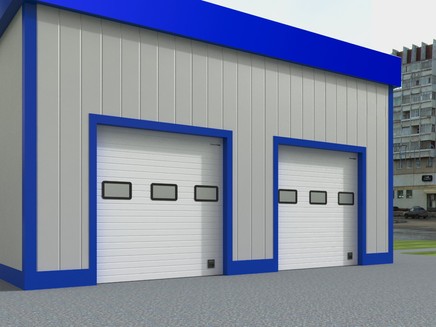

Application
Advantages

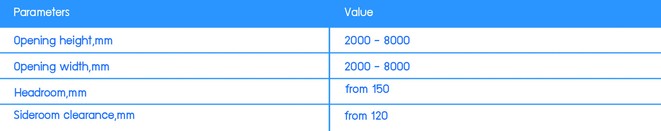

Size Table
